Logos Imaging SOSTÓS II Flat Panel Detector

Product description

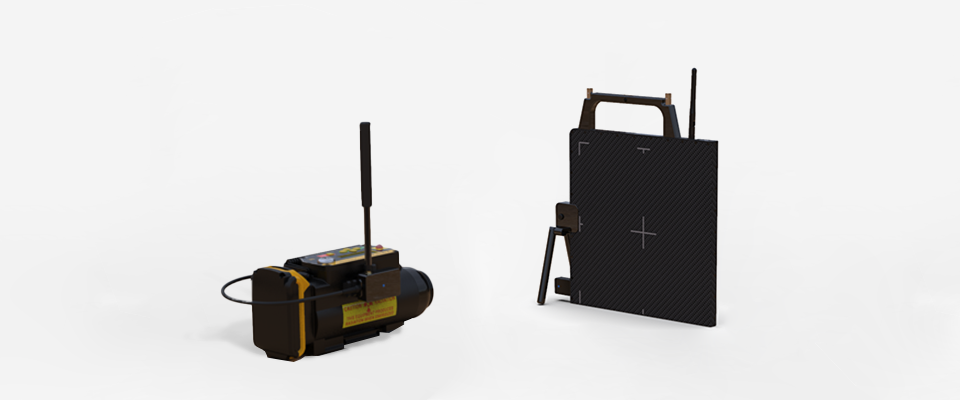

LOGOS Imaging SOSTÓS II flatpanel detector

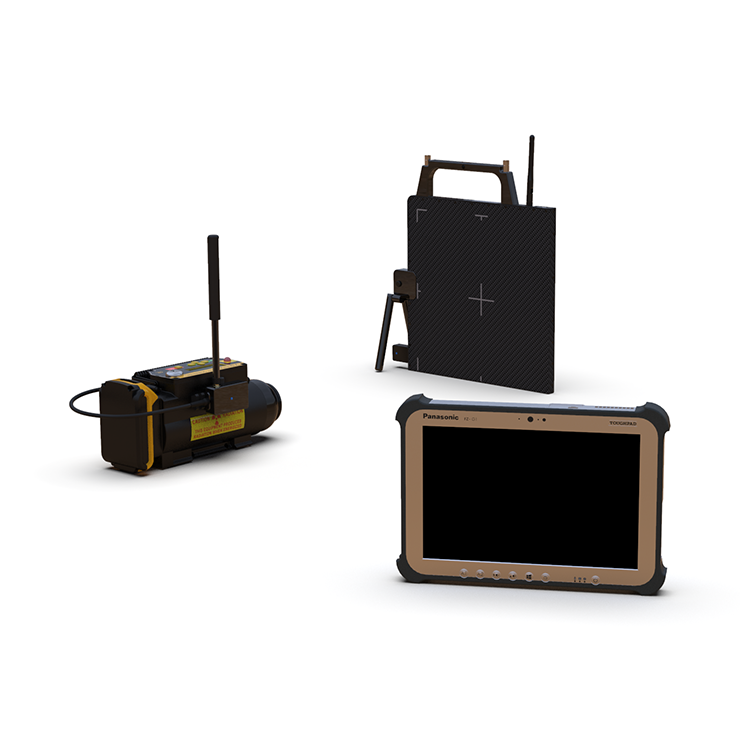

SOSTÓS II is the smallest flatpanel system from Logos Imaging. It weighs approx. 1.2 kg and is suitable for applications that require high mobility of the user. The control unit is a 10.1 inch tablet with touchscreen, which can be used to intuitively control the flatpanel and generator. A carrying case and tactical operations backpack are included for transport.

Datasheet

Technical data

Weight

1.2 kg (with battery)

Dimensions

28.3 x 28.3 x 1.5 cm

Protection class

IP 67

Range

WLAN 150 m / LAN 50 m

Detector type

amorphous silicon

Scintillator

Gadox

Active area

258 mm x 258 mm

Communication

WLAN 2.4 GHz

Pixel Matrix

1536 x 1536

Pixel size

168 μm

Resolution

> 2.98 lp / mm

AD conversion

16 bit

Continuous load capacity

40 to 330 kV

Working temperature range

-20 °C to +50 °C

Energy supply

100 to 240 V or Li-ion battery ("hot swap"): 14.4 V, 93 Wh

System runtime

approx. 3 hrs. per battery

Attributes

Slim and light
Fast setup & image capture
Reliable radio connection

Shatterproof
3 mm detector edge
Automatic Exposure Detection (AED) without additional accessories

Product benefits

Simple and fast image generation

Logos Imaging's flat panel systems produce high quality digital radiographs for immediate and accurate decision making. They consist of only a few components, are set up and ready for use within a few minutes. The control software offers simple, intuitive menu navigation and enables direct image evaluation. The systems can be controlled from a safe distance via radio or cable operation.

Solution diversity for different application scenarios

Logos Imaging offers different flat panel sizes for different application scenarios. All flat panel models are amazingly light and slim. This means that they can also be used in confined spaces.

Reliability in use

Emergency forces must be able to rely on the functionality of a system. All Logos Imaging flat panel systems therefore have a shatterproof housing. Likewise, they are characterized by a stable radio connection.

LIA "Security

All flat panel systems are equipped with LIA “Security” software. The user-friendly touch interface enables fast, intuitive control of the complete X-ray system. An integrated status and battery display for the panel and X-ray generator provides the user with a comprehensive system overview.

LIA “Security” includes helpful image processing functions that generate high-quality images for accurate interpretation:

Stepless image magnification
Distance measurements and calibration
Adjustable or automatic filter to compensate for under / overexposure
Color filter
Sharpness and softness
Visualization of dark, low-contrast image areas using filter functions
Insertion of texts and markers, also colored
Inversion of gray values (positive/negative)
Storage of individual image information (X-ray source, exposure time, etc.)
Data export: Sending to other connected end devices
