IED-Inert TK (OTA-TK08) Modular kit incl. acoustic, optical and/or mechanical effects

Product description

IED-Inert TK (OTA-TK08)

This kit contains versatile components to construct a wide range of inert IEDs. With a wide range of materials, this modular kit combines all the components needed to build a functional ignition device. These components range from simple improvised switches to complex electronics. The user can customize the device by selecting the trigger device, the ignition system and the power supply. The integration of acoustic, optical and/or mechanical effects also emphatically simulates the faulty disarming. All the electronics can be conveniently stored in the plastic storage containers supplied.

Please note that the availability of the color of the detonating cord and the time fuse may vary. The appearance of the containers and components may change depending on availability and changes may be made without prior notice. On request, our IED training kits can be modified to use different types of explosives and/or switches.



  • 1x Improvised Ink Pen Detonator
  • 1x Inert Bullet Case Detonator
  • 1x Electric Blasting Caps (Open-End)
  • 1000 ft. Spool Simulated Detonating Cord (Red)
  • 1000 ft. Spool Simulated Time Fuse (Yellow)
  • 1x FFFF Black Powder Can
  • 1x Black Powder – 5 lb. Bag
  • 1x Ammonium Nitrate / Aluminum Powder – 5 lb. Bag
  • 1x Ammonium Nitrate / Fuel Oil (ANFO) – 5 lb. Bag
  • 1x C4 – 50 lb. Bulk Pack

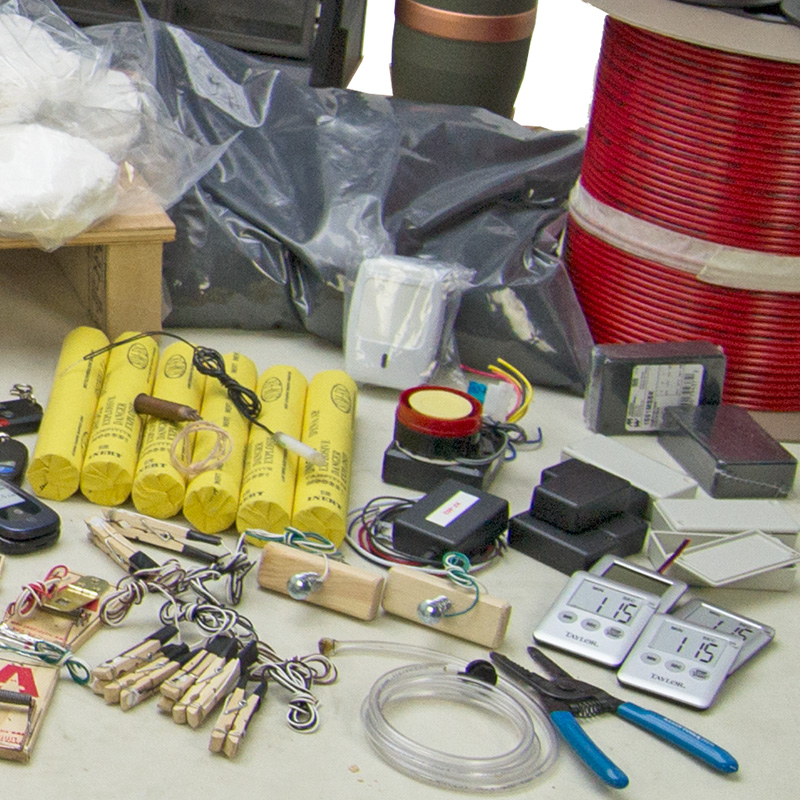

  • 6x Dynamite Stick – Deluxe
  • 1x 105mm M1 NATO HE Artillery Shell

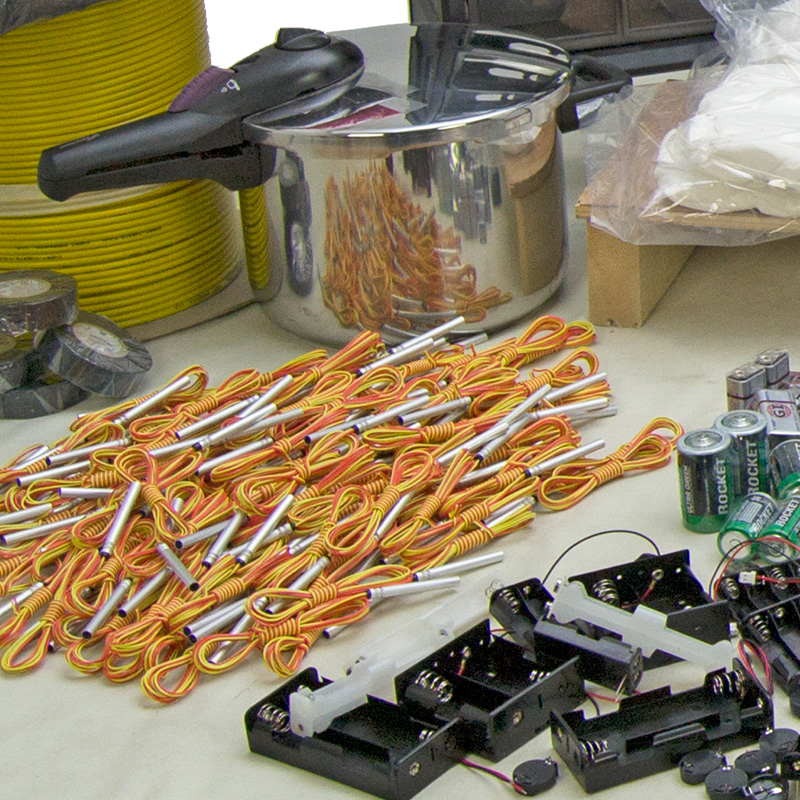

  • 1x Small Pressure Cooker w/ Frag

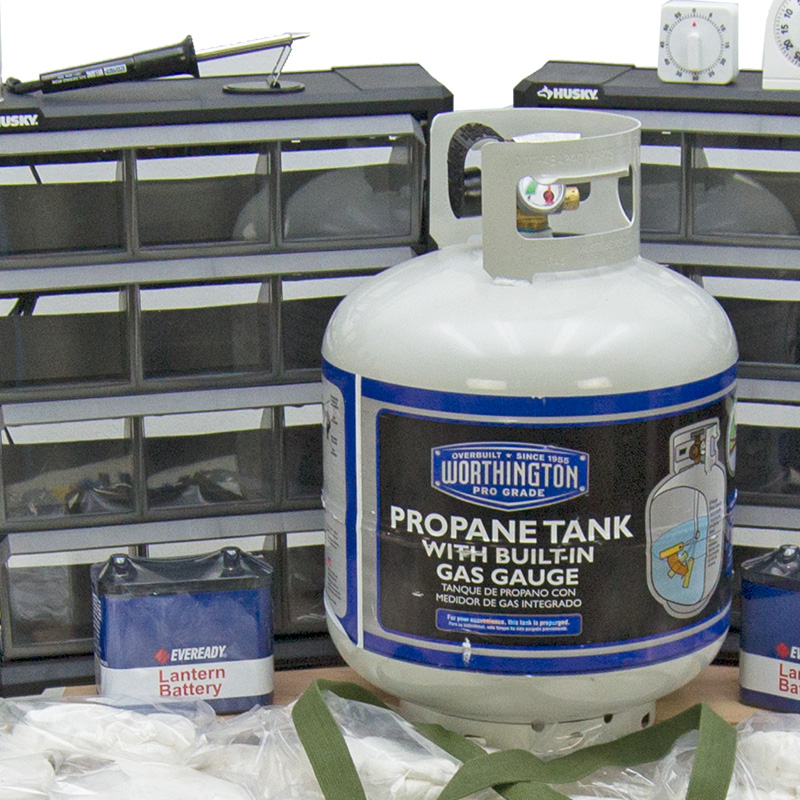

  • 1x Large Propane Tank

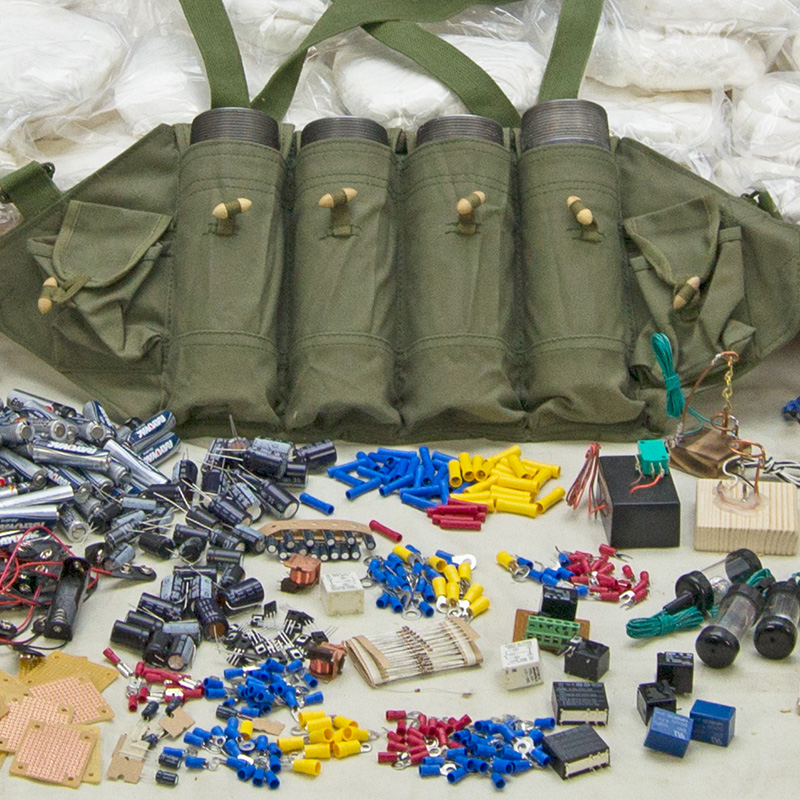

  • 1x Ammo Magazine Vest
  • 1x 1.5″ x 8″ Steel Pipe w/ Caps
  • 12x 20mm (CR2032) Coin Battery Holder
  • 12x 20mm (CR2032) Coin Battery
  • 6x Single AA Cell Battery Holder
  • 6x Dual AA Cell Battery Holder
  • 6x Long Quad AA Cell Battery Holder
  • 6x Quad AA Cell Battery Holder
  • 66x AA Battery
  • 2x Quad C Cell Battery Holder
  • 8x C Cell Battery
  • 2x Dual D Cell Battery Holder
  • 4x D Cell Battery
  • 24x 9 Volt Battery Connector
  • 24x 9 Volt Batteries
  • 2x 12 Volt Lantern Battery
Alle Inhalte anzeigen
Inhalte zuklappen
  • 6x Door Pin Switch (Asst. Types)
  • 20x Snap Action Switch (Asst. Types)
  • 2x 15a Momentary Switch
  • 1x Rotary Snap Action Switch
  • 2x thumbwheel switch
  • 2x Slide Switch
  • 3x Slide Switch PC
  • 12x Momentary Mini Switch
  • 3x Momentary Switch
  • 4x Magnetic Reed Switch
  • 4x Rocker Switch
  • 4x Photocell
  • 2x Knife Switch
  • 4x Press Fit Magnetic Switch
  • 2x Magnetic Switch
  • 2x Vibration/ Tilt Switch
  • 4x SPST Push Button
  • 4x Mini Toggle Switch (Off/On)
  • 4x Mini Toggle Switch (On/Off/On)
  • 4x Doorbell Button
  • 2x Horn Switch
  • 6x Pressure Switch
  • 1x Pneumatic Hose Switch
Alle Inhalte anzeigen
Inhalte zuklappen
  • 8x Clothes Pin Switch (Anti-Pull)
  • 4x Ball In Cage Switch (Anti-Tilt)
  • 4x Loop Switch, 12 ga. Wire (anti-pull)
  • 4x Mousetrap Switch (Tripwire)
  • 4x Mousetrap Switch (Anti-Lift)
  • 4x Pendulum Switch (Anti-Movement)
  • 8x Crush Switch, 22 ga. Wire (Pressure)
  • 2x Micro Switch (Pressure Release)
  • 1x Micro Switch (Anti-Lift)
  • 1x Door Pin Switch (Pressure Release)
  • 2x Impact Switches (Pressure)
  • 1x Large Trembler Switch (Anti-Movement)
  • 1x Copper Pipe Trembler Switch (Anti-Movement)
Alle Inhalte anzeigen
Inhalte zuklappen
  • 1x Cell Phone (Modified)
  • 1x Two-Way Radio (Pair)
  • 1x Motorcycle Alarm
  • 1x PIR sensor
  • 4x Digital Timer (Modified)
  • 2x 60-Minute Mechanical Timer (Safe Separation)
  • 2x 30-minute spring timer (safe separation)
  • 1x Washing Machine Timer, AKA “Dewatering Timer” (Safe Separation)
  • 1x Remote Relay Kit
  • 1x SCR (Silicon Controlled Rectifier) Circuit W/ 9 Volt Relay
  • 2x 12v Relay SPDT
  • 2x 24v Relay SPDT
  • 6x 5v Relay SPDT (asst. types)
  • 2x 9v Relay SPDT
  • 6x 10v Capacitor
  • 6x 35v Capacitor
  • 6x 50v Capacitor
Alle Inhalte anzeigen
Inhalte zuklappen
  • 2x Project Box (Large)
  • 4x Project Box (Medium)
  • 3x Project Box (Small)
  • 50x #10 Spade Terminal, Red
  • 50x #10 Spade Terminal, Blue
  • 50x #10 Ring Terminal, Red
  • 50x #10 Ring Terminal, Yellow
  • 50x #8 Ring Terminal, Yellow
  • 50x #6 Ring Terminal, Blue
  • 50x 5/16″ Ring Terminal, Blue
  • 50x 3/16″ Quick Connect Female, Red
  • 50x Butt Connector, Blue
  • 20x Bread Boards
  • 480x Assorted Resistors
  • 20x SCR (Silicon Controlled Rectifier)
Alle Inhalte anzeigen
Inhalte zuklappen
  • 1x 30 Watt Lightweight Soldering Iron
  • 1x Lead-Free Rosin Core Solder
  • 10x Electrical Tape Spool
  • 4x Wire Spool (Asst. Color)
  • 1x Wire Strippers
  • 4x Plastic Organizers
  • 2x Hard Plastic Transport / Storage Case (Optional)
  • 8x Small Piezo Sirens
  • 2x Large Piezo Sirens
