Golden Engineering XR150 Gen.4 Light and small X-ray pulse generator

Product description

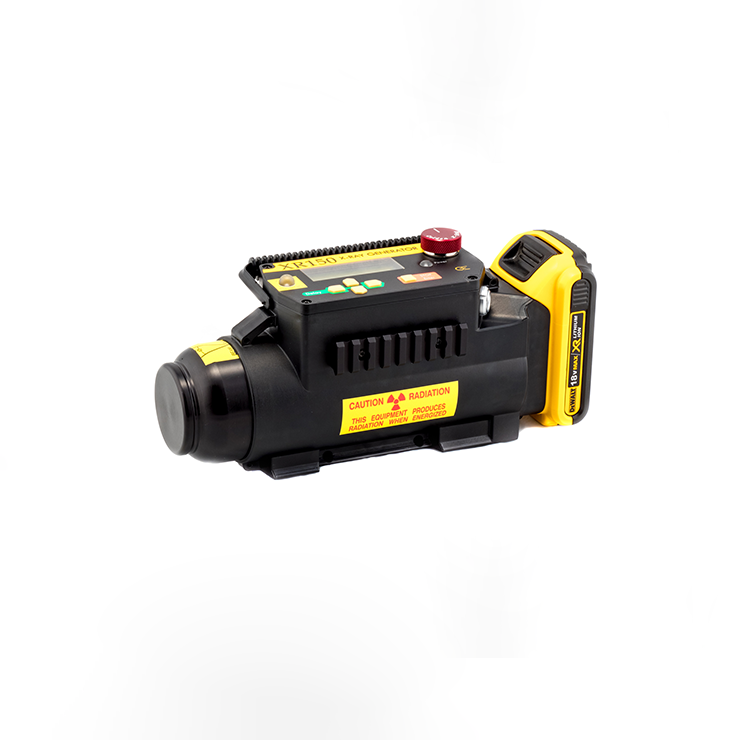

Golden Engineering XR150 Gen.4

The XR150 Gen.4 is the lightest and smallest X-ray pulse generator from Golden Engineering. With its photon energy of 150 kVp, it is suitable for high-contrast imaging of organic materials, plastics and steel (up to 20 mm thick). The highly mobile X-ray generators from Golden Engineering can be operated for hours without being connected to the power grid thanks to their Li-ion batteries. All models are lightweight, easy to handle and ready for immediate use.

With the adaptation of the XR150 to the Gen.4 version, the following new features are available:

  • The larger, daylight-readable display with adjustable color backlighting enables better information presentation and significantly increases readability
  • A second tripod screw ensures twist-proof mounting on the tripod
  • Easier accessibility of the communication/data connection
  • A help button in the operating menu provides the user with explanations of the menu sub-items and their operation at any time

Weight
2.4 kg (XR150 12 V, with battery) / 2.75 kg (XR150 18 V, with battery)
Dimensions
26.87 cm x 9.91 cm x 10.95 cm (12 V, with battery) / 26.65 cm x 9.91 cm x 11.96 cm (18 V, with battery)
Battery
DeWalt® Li-Ion battery pack
Protection class
IP 54
Max. Photon energy
150 kVp

Attributes

  • Low radiation exposure
  • Highly mobile
  • Immediately ready for use
  • Remotely controllable
  • Robust
  • Cost-effective
  • Safe, intuitive handling

Equipment

  • Audiovisual alarm
  • Swivel carrying handle
  • Integrated tripod mount
  • Multi-line, illuminated Liquid Crystal Display
  • Two keys
  • 7-pin communication port
  • Battery (2 pcs.)
  • Battery charger
  • Tripod mounting integrated
  • Hard case
  • Remote release cable
  • Collimator filter (trigger avoidance PIR sensor technology)
  • Manual german
  • Optional accessories: tripod
  • Optional accessories: Radio remote release
  • Optional accessories: Laser sizing device (enables exact alignment of the beam path)
  • Optional accessories: Dual Energy Module (differentiation of organic and inorganic material)

Product benefits

Golden Engineering's X-ray pulse generators are the epitome of mobile and safe X-ray. They produce pulsed X-rays and thus have low radiation exposure.

All models are lightweight, handy and optimized for mobile outdoor use. Li-ion batteries ensure hours of operation independent of the power grid. The X-ray pulse generators are ready for immediate use and do not require material-specific settings of photon energy and heating current.

Golden Engineering offers several models for fluoroscopy of different object materials. From plastic to solid steel (max. 7 cm thickness) - the X-ray pulse generators enable high-contrast and differentiated individual images of objects.

Note

The use of the X-ray pulse generator is subject to the Radiation Protection Ordinance (StrlSchV).
The device may only be used by qualified personnel who have been instructed in its use.

This product is available from ELP GmbH in the following countries:

Germany, Austria, Luxembourg, Belgium, Netherlands, Switzerland
