Golden Engineering XRS4RA Powerful, portable X-ray pulse generator with 360° collimator for lateral radiation

Product description

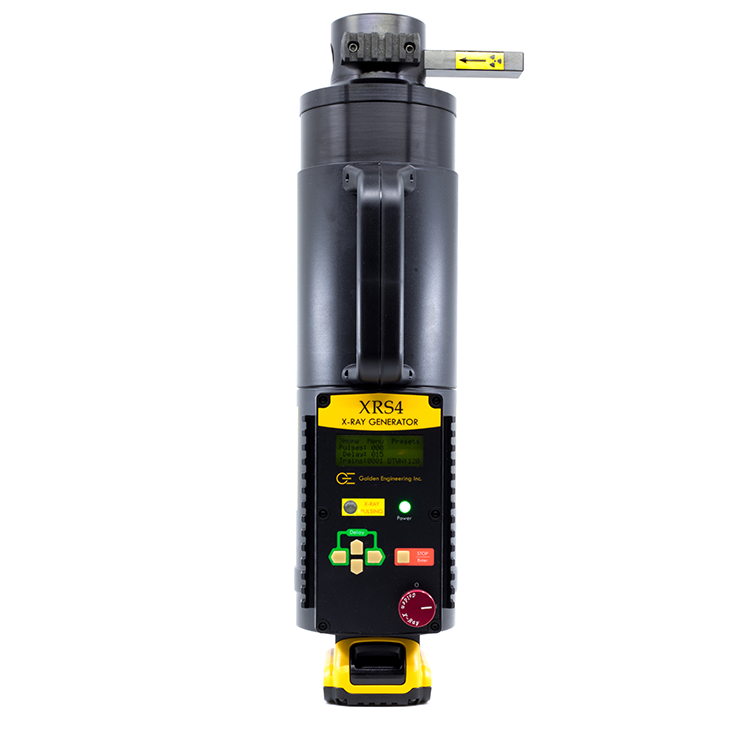

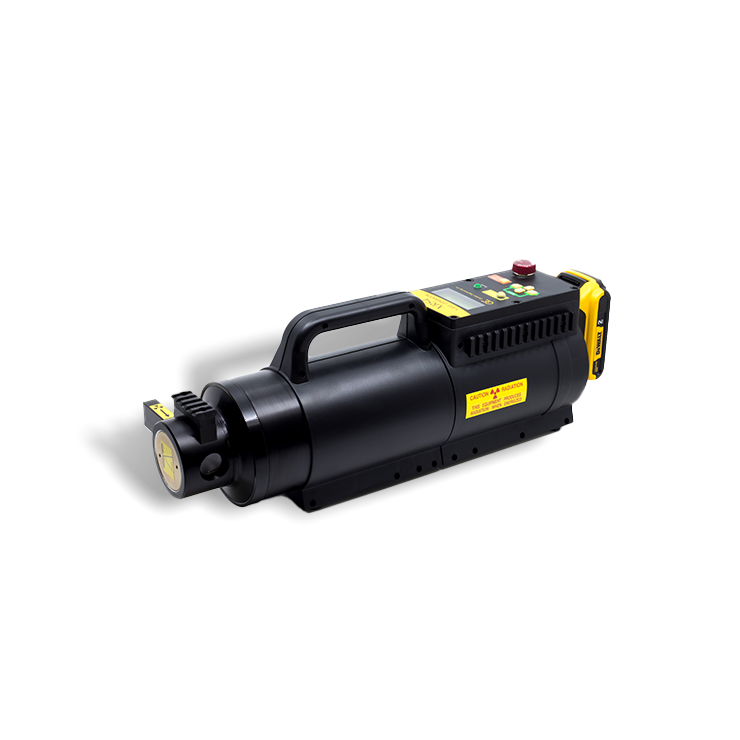

Golden Engineering XRS4RA

The XRS4RA is Golden Engineering’s most powerful battery-powered X-ray pulse generator available today. Thanks to its output power of 370 kVp photon energy, it can shine through very dense materials with high wall thicknesses (e.g. 7 cm steel). Due to its angled and 360° rotatable beam output, the XRS4RA can be used in many situations without a tripod despite its size.

8.25 kg (with battery)
48.92 cm x 12.19 cm x 17.91 cm (with battery)
Acceleration voltage
370 kVp
DeWalt® 18 V Li-Ion battery pack
Protection class
IP 54


  • Low radiation exposure
  • High penetration
  • Highly mobile
  • Immediately ready for use
  • Remotely controllable
  • Robust
  • Cost-effective
  • Safe, intuitive handling


  • Audiovisual alarm
  • Side colimator
  • Integrated tripod mount
  • Multi-line, illuminated Liquid Crystal Display
  • Two conclusions
  • 7-pin communication port
  • Battery (2 pcs.)
  • Battery charger
  • Tripod mounting: Tripod mounting plate
  • Hard case
  • Remote release cable
  • Manual german
  • Optional accessories: tripod
  • Optional accessories: Radio remote release

Product benefits

Golden Engineering's X-ray pulse generators are the epitome of mobile and safe X-ray. They produce pulsed X-rays and thus have low radiation exposure.

All models are lightweight, handy and optimized for mobile outdoor use. Li-ion batteries ensure hours of operation independent of the power grid. The X-ray pulse generators are ready for immediate use and do not require material-specific settings of photon energy and heating current.

Golden Engineering offers several models for fluoroscopy of different object materials. From plastic to solid steel (max. 7 cm thickness) - the X-ray pulse generators enable high-contrast and differentiated individual images of objects.


The use of the X-ray pulse generator is subject to the Radiation Protection Ordinance (StrlSchV).
The device may only be used by qualified personnel who have been instructed in its use.

This product is available from ELP GmbH in the following countries:

Germany, Austria, Luxembourg, Belgium, Netherlands, Switzerland
